ULTRAFILTRATION

ULTRAFILTRATION

Wigen Water Technologies® is a leader in the design and fabrication of nonproprietary Ultrafiltration/Microfiltration Systems using modules from a number of reputable membrane manufacturers. With years of operating experience using different membrane modules in a wide range of applications, we have the expertise to design systems for a specific UF/MF module or open platform systems that can accommodate a number of modules. As a non-proprietary UF/MF System manufacturer, we are not restricted to using a specific membrane module or system design, which allows us to provide a custom system for your application.

With in-house process engineering expertise, custom manufacturing facilities and the ability to select the best membrane for a particular application, Wigen ensures its UF/MF systems will reliably produce the highest quality water, while cost effectively meeting customer requirements.

COMMON APPLICATIONS

  • Municipal drinking water filtration (meets US EPA LT2ESWTR)
  • Municipal and Industrial Wastewater Reuse
  • Industrial Process Water Treatment
  • RO & NF Pre-treatment
  • Backwash Wastewater Recycling

CONTAMINANTS REMOVED INCLUDE THE FOLLOWING:

  • Turbidity and Suspended Solids
  • Bacteria and Viruses
  • Giardia and Cryptosporidium
  • Phosphorus*
  • Total Organic Carbon and Color*
  • Iron & Manganese w/pre-oxidation
    *With pre-coagulation

TYPICAL FEATURES

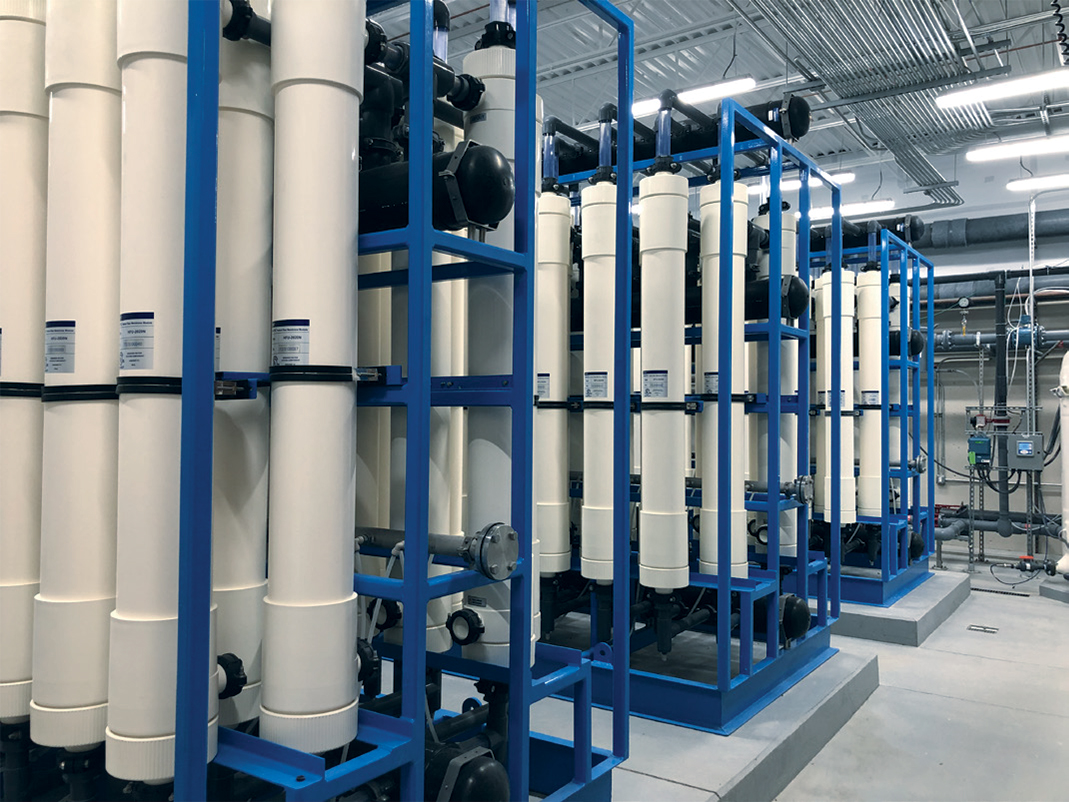

  • Pressurized Hollow Fiber UF/MF Modules
  • PVC, HDPE or Stainless Steel Piping
  • Feed Pumps and Auto Backwashing Stainless Steel Pre-strainers
  • Powder Coated Carbon Steel Frames
  • Electromagnetic Flow Meters to measure feed flow, Pressure Transmitters to measure transmembrane pressure (TMP) and Turbidimeters on filtrate
  • Allen-Bradley® PLC, HMI, VFDs and U.L. 508A Panel Fabrication
  • Skid Mounted Backwashing Pumps and VFDs
  • Skid Mounted CIP Pumps and VFDs
  • HDPE or FRP Heated CIP Tanks with Level Control
  • Air supply for Air Scour and Valve Actuation
  • ISO 9001 Manufacturing Certification

OPTIONAL FEATURES

  • Stainless Steel or Galvanized Frames
  • HDPE or FRP Tanks for feed water and backwash feed with Level Control
  • Maintenance Clean and CIP Dosing Systems
  • Coagulant and Disinfectant Dosing Systems
  • Remote System Monitoring, Control and Data Reporting
  • Spectrum™ Racks to accommodate different UF/MF Modules
  • Remote I/O Panels on each Skid for Ethernet Connection to Master PLC Control Panel
